Ginger processing Plant
HAMILTON GINGER PROCESSING MACHINERY
1.Rotary Turmeric/ Ginger Washing :
All contact parts are of S.S. Simply designed sturdy construction. The material is fed in the
hopper continuously and gets washed by slow tumbling action of the rotary drum. After
washing, the material comes out through the other end. Capable of washing fruits, vegetables
and most suitable for washing fruits like mango, pineapple, pears, apples, tomatoes, potatoes,
carrots & other root vegetable. Drum’s length 6’ and overall length 7.3 ‘. Width 3.3’ height is 5’
Equipped with jets spray arrangement; size of water pipe is 1” with 1 HP. Pump & Motor.
Capacity: 150 Kgs. Per Hour.
Motor: 3 H.P.440V.AC.
Diemension: 87” x 39” x 60” (LxBxH)
Weight: 250 Kgs. Approx.

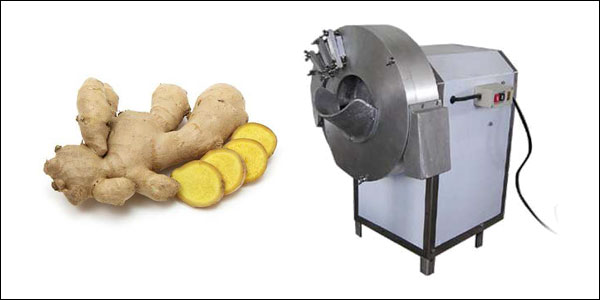

2.TURMERIC/ GINGER SLICER:
Turmeric/Ginger Slicing Machine Introduction
Garlic/Ginger Slicing Machine is mainly used for cutting the garlic and ginger into slices. The
finished slices are even and smooth. And the cutting thickness can be freely adjusted, with no
damage to food. It is currently the most ideal and advanced equipment for garlic and ginger
processing.
Turmeric/Ginger Slicing Machine Features
- Made of stainless steel with durable service.
- Extremely high accuracy, high capacity and low malfunction rate.
- Cutting thickness can be freely adjusted, easy to main
- Well-distributed and glossy slices with beautiful appearance.
- Designed on the basis of advanced technology.
- Practical, easy and safe operation, energy saving.
Turmeric/Ginger Slicing Machine Application
- Suitable for slicing solid vegetables, such as ginger, garlic, onion, potato chips, taro, etc.
- Suitable for small and medium-sized dining room, restaurant, hotel and home use.
- Suitable for vegetable processing factory, condiment factory and vegetable wholesale market.
Model : SQP-100
Power : 3 H.P.
Voltage Capacity : 440v 100kg/h
Weight Dimension : 130kg 970x700x1040 mm
Ginger/Turmeric Slicing Machine Technical Data
