SALIENT FEATURES
TECHNICAL FEATURES

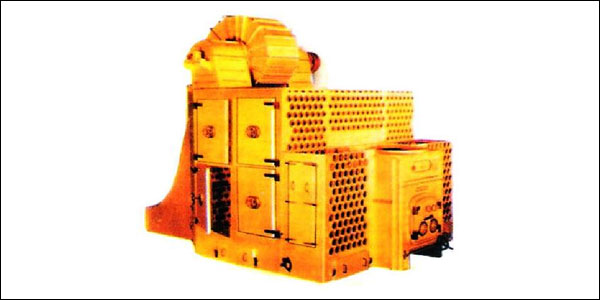

Construction:- Robust yet flexible steel fabricated frame. Tube arrangement is staggered and incorporates single & triple air feed arrangements for maximum, uniform heat transfer.
Supplementary Air Intakes:- This ensures faster cooling of combustion chamber front & rear panels.
Insulated Pressed Steed Doors:- These doors are situated on each side of the stove-each with single fastening. When the doors are opened the entire tube banks are exposed enabling quick cleaning operations.
Crown & Tube Plates:- Small crown & tube plates with faces ground ensures gas- tight joints without pressure. This allows the assembly to expand or contract without causing any damage.
Chimney & underground flue connection:- The Heater can be connected either to steel chimney or underground flue connection through I.D. fan outlet.
Easy to read Thermometer:- A dial thermometer is provided for operators to easily read the prevailing temperatures (Firing) in the chamber.
Refractory:- Necessary Fire bricks & Fire clay for combustion chamber lining are provided.
Joining Materials:- All necessary joining packing & asbestos lagging are supplied.
Accessories:- With every stove tube cleaning brushes & firing tools are provided.
Technical Data:- Overall height- 4416mm, Overall length- 5150mm, Floor Space- 3480mm x 5150mm
