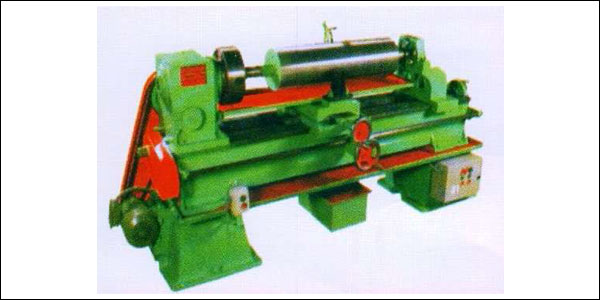

HAMILTON ENGINEERING COMPANY’S CTC ROLLER MILLING CUM GROOVING MACHINE
Suitable for milling 40/50/60/70/75/80/96/100 Helical grooves of 7”f to 13” f CTC Rollers. Efficient smooth trouble free performance. Easy to operate, Perfect helix milling of rollers of all sizes up to length of 42”/52”. Heavy machine bed. Gears & lead screws are made of alloy steel with phosphor bronze nut. Inbuilt heavy duty independent chuck. Motor cooling pump tank, limit switches and electrical panel box is provided. Heavy duty gearbox with motor provided.
HAMILTON ENGINEERING COMPANY’S CTC CUTTER GRINDER MACHINE
Salient Features:
Specially designed for grinding CTC Milling Cutter. The cross feed movement is graduated om 0.001” divisions to provide for fine grinding of cutters. Specially designed swivel base graduated in degrees for grinding both LH & RH milling cutters accurately to correct angles. Limit stops are provided to avoid fouling of grinding wheel.
HAMILTON ENGINEERING COMPANY’S INSPECTION BENCH
Salient features:
Specially designed for an easy and accurate inspection of the CTC Rollers for proper matching. Suitable for all sizes of rollers as adjustable bracket can be moved by means of lead screw. The machine is easily movable as it is mounted on for nos. castor wheels.
CHASING MACHINE
Suitable for grooving CTC Segment 7” Dia to 13” Dia roller & can accommodate roller up to 42” long, Heavy duty cast iron graded casting bed, lead screw of special alloy steel and phosphor bronze nut, special worm reduction gear box complete in all respect with electricals.
SPECIAL PURPOSE MILLING CUTTER GRINDER MACHINE
Complete with all respect with a spindle swivel base graduated in degrees, table –traverse through a rack and pinion with electricals.
CHASER GRINDER MACHINE
Comprises of steady cast iron base, 8” dia cup wheel and plain wheel complete in all respect with chaser holder and electricals.
